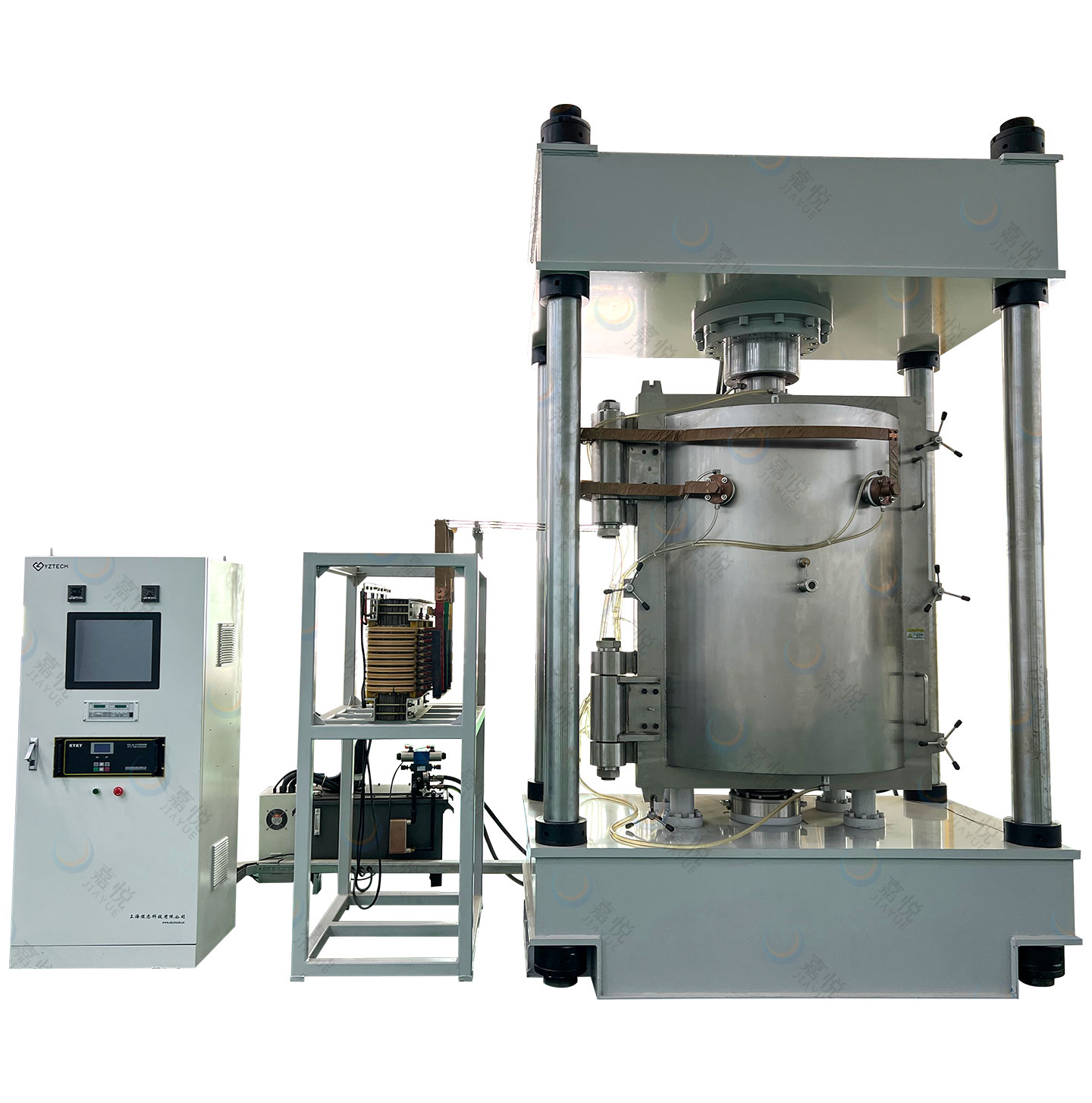

• I、Product Introduction

    The equipment is mainly used for metal compounds, ceramics, inorganic compounds and nano materials under vacuum or protective atmosphere with pressurizing, heating and sintering, so as to obtain high density products, such as producing high-precision silicon nitride ceramic bearings.

    II、Product Features

    1. Various forms, including four column and double column structures. There are multiple discharging forms such as upper discharging, lower discharging and side door discharging. The pressurization modes include upper pressurization, lower pressurization or bidirectional pressurization; The frame adopts casting molding or profile welding, and is processed integrally to ensure the strength and reliability of the equipment;

    2. The heating forms are diversified. Tungsten molybdenum, graphite, resistance wire and other heating elements can be used. The heating elements can be selected according to different temperature ranges. The heating forms can be selected according to different sample forms. The selection range is wide and the temperature control range is large;

    3. Select more reasonable thermal insulation materials and structures according to different heating elements and heating forms, with better thermal insulation performance. It can effectively isolate heat even at very high temperatures and save energy consumption;

    4. Diversified vacuum system configuration, select different vacuum level system according to process requirements;

    5. It is equipped with a charging and discharging system, which can quickly complete the replacement of the internal environment of the cavity in combination with the vacuum system. The customized vacuum / atmosphere environment ensures that the sample can better complete the sintering and pressurization functions;

    6. Humanized configuration, which can realize multiple choices of manual operation and intelligent operation;

    7. One furnace is multi-purpose and can be used as a simple vacuum or atmosphere sintering furnace;

    8. This product accepts non-standard customization.

    III、Product Parameters

    TYPE

    Working zone size

    D×Hmm

    Maximum temp

    Vacuum( under cold condition)

    Pa

    Pressuring rate

    Pa/h

    Maximum powe

    Kw

    Pressure

    T

    Misalignment

    mm

    Inflation Pressure

    MPa

    YVP-1616020TG

    Φ160×160

    2200

    5×10-3

    3

    40

    20

    100

    0.05

    YVP-2525050TG

    Φ250×250

    2200

    5×10-3

    3

    75

    50

    150

    0.05

    YVP-3032100TG

    Φ300×320

    2200

    5×10-3

    3

    100

    100

    150

    0.05

    Note: The above technical parameters can be adjusted according to the process and are not used as the basis for acceptance. The specific technical scheme and agreement shall prevail.
