• I、Product Introduction

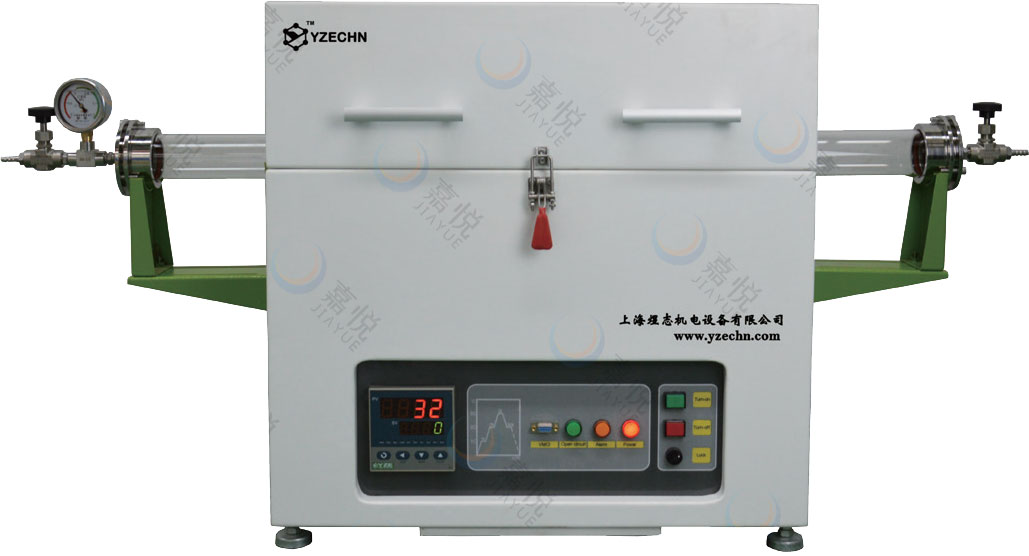

    Model 1200 tubular furnace uses resistance wire as heating element, adopts double-layer shell structure and intelligent program temperature control system, controlled by silicon controlled, with high temperature control accuracy; The double-layer furnace shell is equipped with an air cooling system, which effectively reduces the surface temperature of the furnace shell; Combined with our standard vacuum and gas mixing system, it can pump vacuum and pass atmosphere; The furnace cover can be opened to reduce temperature rapidly, with reasonable structure and beautiful appearance.

    II、Product Features

    1. The furnace cover can be opened, the heated materials can be observed in real time, and the temperature can be rapidly reduced or increased to meet the experimental needs of sudden cooling and heating of materials.

    2. The furnace adopts imported alumina polycrystalline fiber material, which has good thermal insulation performance, durability, high tensile strength, no foreign balls, high purity, and obvious energy saving effect better than domestic fiber materials.

    3. The heating element adopts high resistance and high-quality alloy wire, which is durable and can reach 1200 ℃.

    4. Quick interfaces for vacuum and gas circuits are reserved, which can be used with our vacuum and gas mixing systems.

    5. A 485 conversion interface is reserved, which can be connected with the computer through our company's special software, and can realize the functions of remote control, real-time tracking, history recording and output report of single or multiple electric furnaces.

    6. When the upper cover is opened, the power is automatically cut off, the over temperature alarm is given and the power is cut off, and the leakage protection is provided. The operation is safe and reliable.

    III、Main purpose and scope of application

    It is used in universities, scientific research institutes, industrial and mining enterprises for graphene growth, high-temperature atmosphere sintering, atmosphere reduction, CVD experiments, etc.

    IV、Product Parameters

    Furnace structure

    Double layer structure

    power

    AC220V,50/60Hz;maximum:3.5kw

    Operation temp

    Maximum:1200℃,long operation≤1150℃

    Heating rate

    Recommended ≤10℃/min,maximum heating rate:30℃/min

    Cooling rate

    700℃and above≤10℃/min

    Temperature zone length

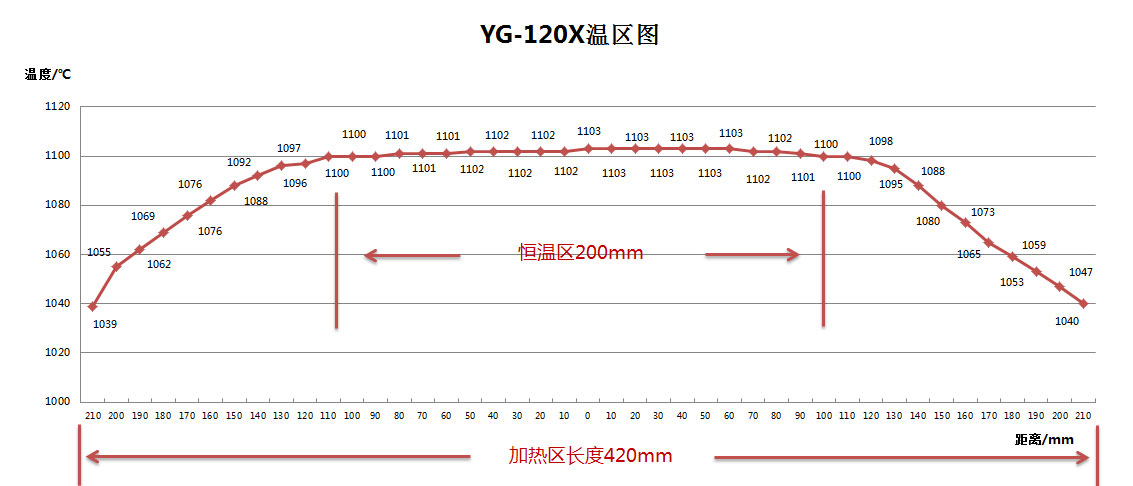

    Heating zone :420mm,constant temperature zone: 200mm



    Furnace tube

    Glass:Φ60/80/100×1000mm;

    flue plug design:2,place on the two side

    Sealling flange

    Stainless steel sealling flange

    Temperature control

    Automatic control,PID control、30 stages temperature program;accuracy±1℃

    Heating element

    Alloy wire

    thermocouple

    N type

    Size and weight

    1160×520×610mm ;75kg

    Standard configuration

    1 main machine; 1 set of sealling flange,4 O type circle, 1 glass tube, 1 pair high temperature gloves, crucible hock,

    Type and vacuum degree

    Low vacuum YZK-10 ≤10Pa;

    Medium vacuum YZK-01 ≤1Pa;

    High vacuum YZK-0005 ≤0.005Pa

    system

    Flow meter (system)

    Quality meter ( system)

    selected

    Corundum crucible, glass tube, computer control system

    Warranty

    1 year (without material)
