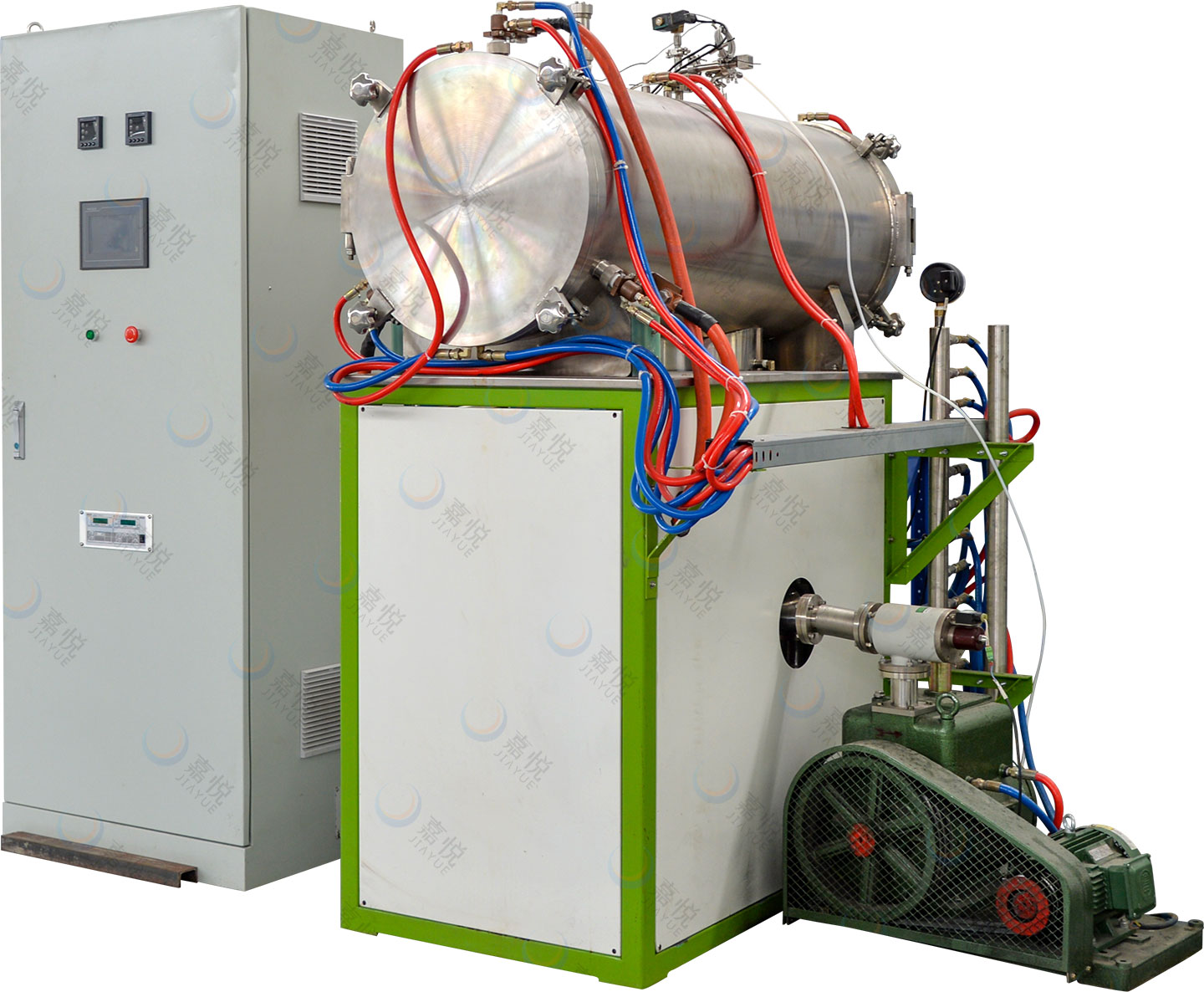

I、Application of Experimental Silicon monoxide preparation equipment
It is widely used for sintering inorganic materials (such as ceramic seals, silicon carbide, zirconia, zinc oxide, alumina, etc.) and metal materials (such as cemented carbide) in vacuum or protective atmosphere. It is really suitable for annealing, brazing, sintering and degassing of metal materials under high vacuum and high temperature conditions, and also suitable for de-hydroxylation of quartz materials.
II、Main features of Experimental Silicon monoxide preparation equipment
1. Integrated design, compact structure, beautiful appearance, with casters, convenient and fast relocation.
2. Side door structure, built-in collection bucket, exquisite structure, convenient loading and unloading.
3. Touch screen + PLC control mode is adopted, with high degree of automation, intuitive operation and powerful functions. The operation screen visually displays the operation status and operation data of each component.
4. It has process online editing, storage, calling, uploading and downloading functions. Dozens of sintering processes can be pre stored in the touch screen. Once edited, it can be directly called and used in the future. It saves the trouble of editing the process for many times, avoids input errors and burns the product.
5. Sintering temperature, vacuum degree and other data can be recorded in real time, and can also be started and stopped at any time to reduce useless data. Data can be queried, exported and downloaded.
6. High sintering temperature with molybdenum wire heater.
7. The self-contained water-cooled machine saves the trouble of customers in water engineering.
III、Technical parameters of Experimental Silicon monoxide preparation equipment
1 |
Power supply |
three-phase 380V 50Hz |
2 |
Heating power |
25kW ± 10% (single-phase 380V) |
3 |
Design temperature |
1200℃ |
4 |
Rated temperature |
0~1200℃ |
5 |
Working zone size |
Φ60×60(D×H,mm) |
6 |
Number of temperature control zones |
single zone |
7 |
Temperature control mode |
thermocouple |
8 |
Temperature control accuracy |
±1℃ |
9 |
Cold limit vacuum degree |
6.67×10-3Pa(empty furnace, cold state, after baking and degassing) |
10 |
inflation atmosphere |
noble gas |
11 |
inflation pressure |
≤0.05MPa |
Product Specification |
||
1 |
Overall dimension |
1250×850×1800m(L×W×H) |
2 |
Total equipment weight |
400Kg |
